Coachmen RV Prism Elite Motor Home Class C - Diesel RVs For Sale

1 of 33

The Prism Elite Class C diesel motorhomes by Coachmen RV offer unique styling, luxury, and exciting drivability with the prestige of a Mercedes-Benz Sprinter chassis. Whether you travel far or near, this multi-use touring RV will make you want to continue driving and exploring!


Each is built with an automatic 7G-Tronic transmission, and includes active lane-keeping, active brake and attention assist for safety on the highways and in town. Some of the exterior features include vacuum bonded laminated sidewalls, Azdel SuperLite substrate with aluminum framing, and a molded fiberglass front cap with front window. The interior is just as impressive with an enlarged molded plastic cabover area with cabover bunk, large dual pane sliding windows, the Firefly Multiplex system, and Wi-Fi Ranger Sky4 to mention a few features.


When you want to start traveling with unique styling to local events and/or far-away destinations, and the luxury you are accustom to enjoying, choose a Coachmen RV Prism Elite Class C diesel, and hit the road!

  • Prism Elite 24DS

    Prism Elite 24DS Floorplan Image

    Coachmen Prism Elite Class C diesel motorhome 24DS highlights: 36" x 76" Bunk ... more about Prism Elite 24DS


    Sleeps 4
    Slides 2
    Length 24 ft 11 in
    Ext Width 7 ft 8 in
    Ext Height 10 ft 9 in
    Int Height 6 ft 9 in
    Interior Color Luna Gray, Innocent Maple
    Exterior Color Blue Steel, Black Ice, Sonoma
    Hitch Weight 5000 lbs
    GVWR 11030 lbs
    Fresh Water Capacity 29 gals
    Grey Water Capacity 32 gals
    Black Water Capacity 35 gals
    Fuel Type Diesel
    Engine V6 3.0L
    Chassis 3500 Sprinter
    Horsepower 188 hp
    Fuel Capacity 24 gals
    Wheelbase 170 in
    Number Of Bunks 1
    Available Beds RV Queen
    Torque 325 ft-lb
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 85 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Truma Aqua Go On Demand
    AC BTU 15000 btu
    Basement Storage 26 cu. ft.
    TV Info Coach TV, Exterior TV
    Awning Info 14' Armless
    Gross Combined Weight 15250 lbs
    Shower Type Standard

    Similar Floorplans

Prism Elite Features:

Standard Features


Mercedes-Benz® Sprinter Chassis

  • Automatic 7G-Tronic Transmission
  • Active Lane-Keeping Assist
  • Active Brake Assist
  • Attention Assist
  • Adaptive Cruise Control
  • MBUX multimedia system w/Navigation
  • Intelligent Voice Control System

Exterior Features

  • 2" Vacuum Bonded Laminated Sidewalls
  • Lamilux 4000 Color-Infused Fiberglass
  • Azdel SuperLite Substrate with Aluminum Framing
  • CrossFlex Roof/Membrane
  • Solar Prep
  • Armless Awning
  • Molded Fiberglass Front Cap w/Front Window
  • Curved Wing Walls
  • Rear Fiberglass Cap
  • Integrated Fiberglass Running Boards
  • Electronic Step at Entry Door
  • Standard 15K BTU Low Profile A/C

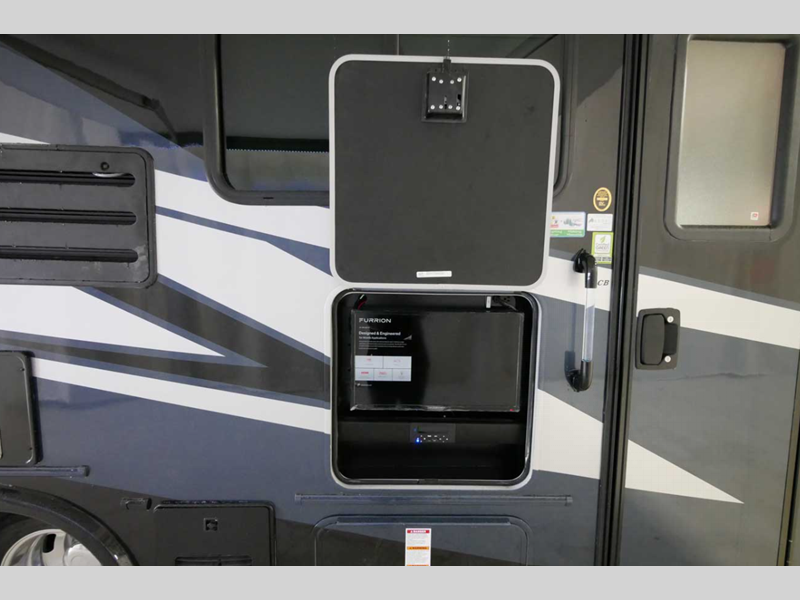

  • Exterior Entertainment Center
  • Exterior Storage
  • 85# Propane Capacity

Interior Features

  • Truma Aqua Go On Demand Water Heater
  • Solid Surface Countertops
  • Large Closets
  • Firefly Multiplex System
  • Enlarged Molded Plastic Cabover Area
  • Even Cool A/C Ducting System
  • Wi-Fi Ranger Sky4
  • Cabover Bunk
  • Large Dual Pane Sliding Windows
  • Slide-in-Slide Entertainment Center with Fireplace (24FSE Only)
  • Day/Night Window Shades
  • Soft Touch Ceiling

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.
